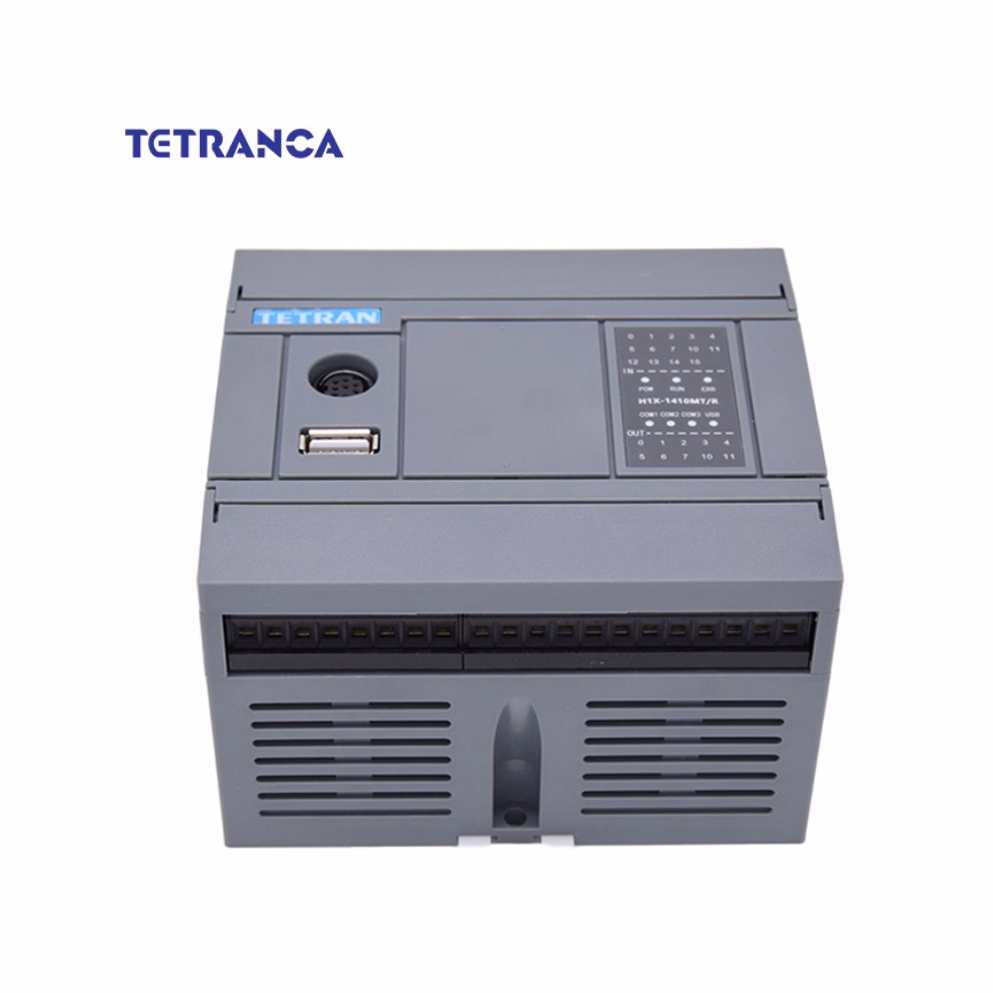

H1X 16point Host 24V Programmable Controller DC P | RFQ Sourcing Details

. Overview Specification Company Profile Certifications FAQ Overview . Model NO.

H1X-0808MT2-D Mathematical Model Linear Signal Continuous Function Automatic Control, Protection, Monitoring, Measurement Certification ISO: 9001, CE Condition New Customized Customized Material Plastic Ethernet*2 Switch Function Ethernet Modbus TCP/IP Free Communication Protocol Ethercat Plug and Play RS232 Brand New Communication USB Downloadable Program RS485 Support Free Agreement Voltage Range 24V Power Supply Type AC Power Supply Point Host 16 Non-Standard Function E 1 Ethernet Interface Non-Standard Function 2e 2 Ethernet Interface Non-Standard Function M Built-in Electronic Cam Mt NTN Type Transistor Output Transport Package Carton Trademark Tetranca Origin Guangdong, China HS Code Production Capacity 30000pieces/Year Packaging & Delivery Package Size 20.00cm * 10.00cm * 15.00cm Package Gross Weight 2.000kg Standard PLC-H1X series The H1X standard PLC series offers a main unit with 16 to 60 points and digital input/output modules with 8 to 40 points.

The maximum input/output expansion of the main unit can reach up to 256/256 points. It can also be used in conjunction with analog input/output expansion modules, temperature expansion modules, and weighing expansion modules.

With rich expansion capabilities and stable performance, it can meet various application scenarios Specification Performance characteristics 1.High-speed input/output: Supports up to 4 AB phase inputs at 200. Khz, and up to 12-axis high-speed output, including 8 axes at 200. Khz and 4 axes at 50. Khz 2.

Optional Ethernet function, supporting online monitoring. The program download supports MODBUSTCP/IP communication and free protocol communication. 3.

It adopts dual communication ports of RS232 and RS485*2, both of which can achieve HMI or PC communication and are compatible with MODBUS ASCII and MODBUS RTU communication protocols. 4. It has a power-off preservation function, and the program is permanently saved. 5.

Rich expansion: The digital quantity can be expanded to 512 IO points, and it can also be equipped with analog quantity and weighing expansion. 6. The program is encrypted and users can choose whether to upload or not to protect their in ble for downloading and monitoring.

The communication speed is faster, with a download rate of up to 12.

Mbps Without Ethernet (standard machine) AC power supply DC power supply Points Relay output Transistor output (NPN type) Relay output Transistor output (NPN type) 16points H1X-0808MR-A H1X-0808MT-A H1X-0808MR-D H1X-0808MT-D 24points H1X-1410MR-A H1X-1410MT-A H1X-1410MR-D H1X-1410MT-D 32points H1X-1616MR-A H1X-1616MT-A H1X-1616MR-D H1X-1616MT-D 40points H1X-2416MR-A H1X-2416MT-A H1X-2416MR-D H1X-2416MT-D 60points H1X-3624MR-A H1X-3624MT-A H1X-3624MR-D H1X-3624MT-D With Ethernet (non-standard machine) AC power supply DC power supply Points Relay output Transistor output (NPN type) Relay output Transistor output (NPN type) 16points H1X-0808MR-E-A H1X-0808MT-E-A H1X-0808MR-E-D H1X-0808MT-E-D 24points H1X-1410MR-E-A H1X-1410MT-E-A H1X-1410MR-E-D H1X-1410MT-E-D 32points H1X-1616MR-2E-A H1X-1616MT-2E-A H1X-1616MR-2E-D H1X-1616MT-2E-D 40points H1X-2416MR-2E-A H1X-2416MT-2E-A H1X-2416MR-2E-D H1X-2416MT-2E-D 60points H1X-3624MR-2E-A H1X-3624MT-2E-A H1X-3624MR-2E-D H1X-3624MT-2E-D Company Profile Shenzhen Tianchuan Electric Technology Co., Ltd Brand strength- The most potential brand in low voltage inverter market - The most growing brand of automation in China - Annual capacity: 500000 sets of inverters Core technology - 187 in tware copyrights) - Focus on motor drive control for 15 years(Master the leading technology of high performancevariable frequency vector control and motion control.) First class service - It has provided drive and control solutionsfor more than 1.5 milion motors woridiwide.

- Implement local service strategy, morethan 15 liaison offices, more than 80 service outlets. - Real factory, best price, online quotation!

Shenzhen Tianchuan Electric Technology Co., Ltd, we are a nationally certified high-tech enterprise, is a private high-tech enterprise in Shenzhen, which is a high-tech enterprise recognized by the state and a software enterprise recognized by Shenzhen Science and Technology and Information Bureau.

Since its establishment, the company specializes in the development, production, sales and service of industrial automation products.

Safety Precautions Safety Precautions (1) It is strictly prohibited to connect the AC power cord to the U, V, and W output terminals of the frequency converter;otherwise, it will cause complete damage to the frequency converter.

(2) Do not short-circuit (-) and (+), otherwise it will cause damage to the frequency converter and short circuit of the power supply. (3) The frequency converter must not be installed on flammable materials;otherwise, there is a risk of fire.

(4) Do not install in an environment containing explosive gases, otherwise there is a risk of explosion. (5) After the main circuit is connected, the exposed terminal blocks should be insulated;otherwise, there is a risk of electric shock.

(6) Do not operate the frequency converter with wet hands when it is powered on, otherwise there is a risk of electric shock. (7) The grounding terminal of the frequency converter must be well grounded. (8) When the frequency converter is powered on, do not open the face cover or perform wiring operations.

Wiring or inspection can only be carried out after the power is turned off for 10 minutes. (9) Wiring operations must be carried out by personnel with professional qualifications.

It is strictly prohibited to leave any conductive objects inside the machine, otherwise there is a risk of electric shock or damage to the frequency converter.

For frequency converters that have been stored for more than two years, when powering on, the voltage should be gradually increased with a voltage regulator first;otherwise, there is a risk of electric shock and explosion. Certifications Certifications AUTHORITATIVE Engaged in this field formany years.

Focus on creating high-quality products, We proceed from reality and insist on qualitycontrol. Obtained a number of domestic and foreigncertifications, and made safety products together FAQ Product packaging Standard export packaging, waterproof, dustproof, and pressure resistant, with customizable labels and logos.

Q:How about the warranty? A: Borsen provides 18 months warranty for all the goods from us
